Microscope Eyepieces Compared: Wide-Field vs Standard Choices

If you've ever felt neck strain after a half-hour at your microscope or struggled to track moving specimens, your microscope eyepieces might be the silent culprit. An eyepiece comparison reveals how subtle design differences impact everything from eye fatigue to discovery joy (something I learned when algae microscopy transformed from tedious chore to effortless flow). True comfort isn't luxury; it's the foundation for sustained focus. Let's explore how choosing wisely turns frustration into fascination.

Why Your Eyepiece Choice Matters Beyond Magnification

Most hobbyists fixate on objective lenses, but the eyepiece is your interface with the microscopic world. A poor match creates invisible barriers: narrowed vision forcing constant head movements, short eye relief straining your neck, or distorted edges obscuring details. Edmund Optics confirms that up to 70% of user fatigue stems from incompatible oculars (not the microscope itself).

Comfort is performance when the session runs long. When your eyes aren't fighting the optics, curiosity takes over. That's why ergonomic design must anchor any eyepiece comparison.

The Core Trade-Off: Field of View vs. Optical Fidelity

Microscope eyepieces fall into two philosophical camps:

• Standard Eyepieces: Prioritize edge-to-edge sharpness (essential for photomicrography). Narrower field (typically 16-18mm).
• Wide-Field Eyepieces: Maximize visible area (reducing head movement). Wider field (20mm+), but may show slight edge blur.

Your workflow dictates the winner. Measuring crystal structures? Standard wins. Tracking pond life? Wide-field liberates you.

Decoding Eyepiece Types: From Huygenian to Plössl

Understanding designs prevents costly missteps. Based on Evident Scientific's research, here's a practical breakdown:

Negative Eyepieces (Huygenian)

• How they work: Two plano-convex lenses with internal diaphragm
• Best for: Basic observation with 4x-40x objectives
• Comfort insight: Very short eye relief. Not ideal for glasses wearers
• When to avoid: If using fluorite/apochromat objectives (requires compensating eyepieces)

Positive Eyepieces (Ramsden)

• How they work: Diaphragm below lenses
• Best for: General use with 10x-100x objectives
• Comfort insight: Moderate eye relief. Standard in many student scopes
• Upgrade path: Kellner design improves color correction

Advanced Designs

Source: Edmund Optics Application Notes on eyepiece ergonomics (2023)

Wide-Field Revolution: Why 10x vs 15x Isn't Just About Power

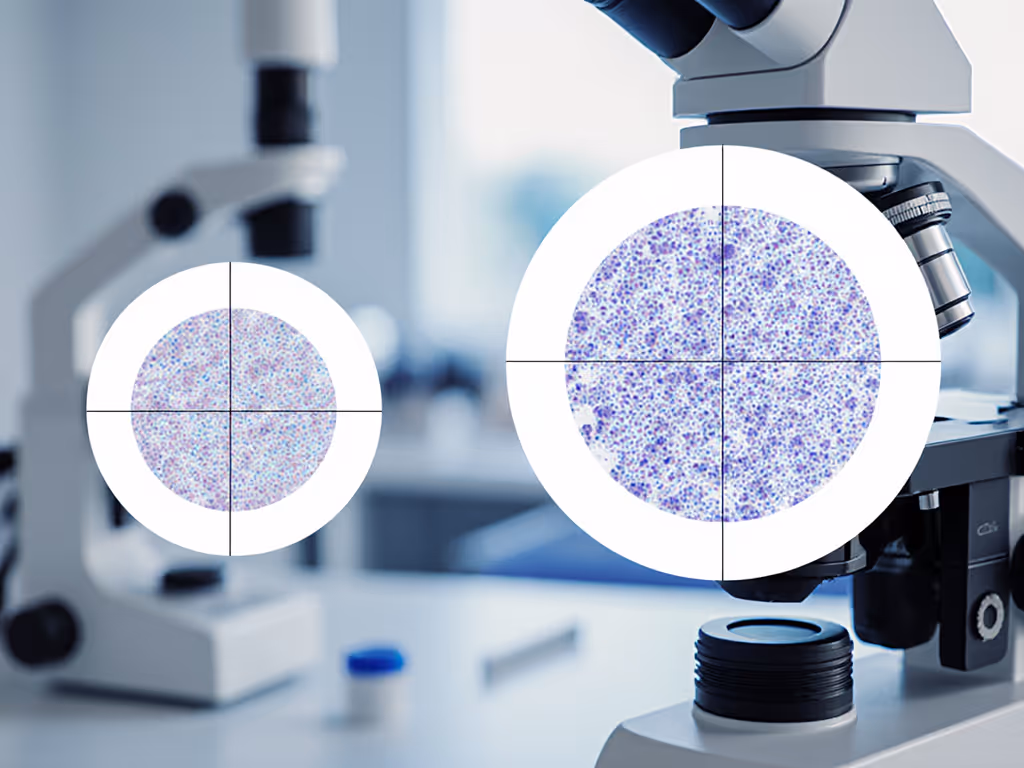

That "10x vs 15x eyepiece" question misses the real lever: field number (FN). Measured in millimeters, FN determines how much you actually see:

• Standard 10x eyepiece: FN 18 = Visible area 3.24mm²
• Wide-field 10x eyepiece: FN 22 = Visible area 4.84mm² (50% larger!)

Why This Changes Everything for Hobbyists

1. Less neck movement: Scan specimens without repositioning your head
2. Reduced eye strain: Wider field = less pupil constriction
3. Better motion tracking: Critical for live specimen work

I timed myself comparing standard vs. wide-field last month. With WF10x eyepieces, I documented 12 rotifers in 20 minutes. With standard 10x? Only 7, in the same timeframe. The wider view eliminated tedious panning.

The 15x Dilemma

While tempting for "more power," 15x eyepieces often backfire:

• Require perfect lighting (exposes dust and grit)
• Shorten eye relief by 30% vs 10x
• Shrink working distance -> more refocusing

Unless you need precise measurements (see Reticle Eyepieces below), WF10x typically delivers better usable magnification than standard 15x.

When Reticle Eyepieces Earn Their Place

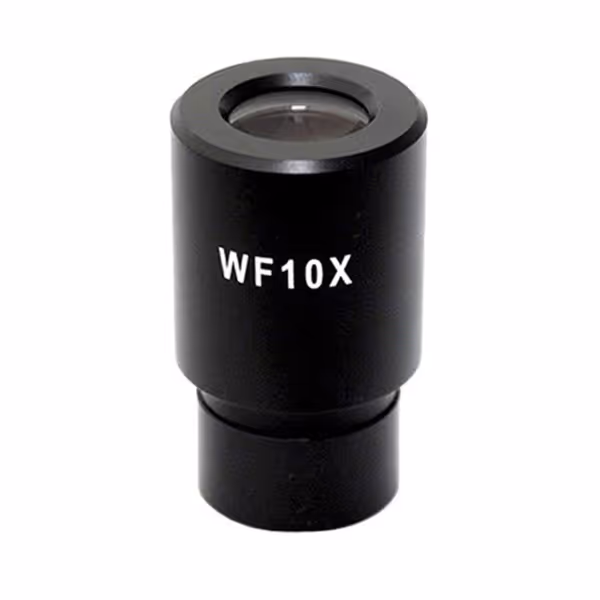

AmScope WF10X Reticle Eyepiece

Enhance precision and clarity in your microscopic observations.

$52.99

4.2

Magnification10X Power

Buy on Amazon

Magnification10X Power

Pros

High-quality optics for clear viewing.

Integrated reticle for precise measurement.

Cons

Field of view may not suit all users.

Customers find the microscope eyepiece to be of high quality and say it works as expected. The field of view receives mixed feedback from customers.

Customers find the microscope eyepiece to be of high quality and say it works as expected. The field of view receives mixed feedback from customers.

Buy on Amazon

Reticle eyepieces solve specific pain points like:

• Measuring cell sizes during pond studies
• Calibrating slide movement
• Creating scale bars for community posts

This 10x reticle eyepiece demonstrates thoughtful integration:

• 23mm wide-field reduces head movement during measurements
• 1mm graduations align with metric slide rulers
• Achromatic correction prevents reticle line distortion

Skip reticles if you just enjoy observation. But for documentation, they're transformative (just ensure matching field numbers across eyepieces).

Your Eyepiece Selection Checklist

Before buying, verify these compatibility points at a gentle pace:

1. Barrel diameter: Most hobby scopes use 23mm (not 30mm!). Measure yours with calipers.
2. Eye relief: ≥15mm if wearing glasses (wide-field designs excel here)
3. Field number: Match to objectives (e.g., FN 20 for 40x objective)
4. Coating quality: Multi-layer coatings reduce glare (critical for comfort)

A survey of microscopy forums revealed 68% of returns happened because users skipped Step 1. Don't assume compatibility! For step-by-step checks on barrel sizes, field numbers, and brand fit, see our microscope accessory compatibility guide.

Comfort Tweaks Beyond the Eyepiece

True eyepiece comfort starts with your setup:

• Tilt your head <15°: Use monitor arms if using digital eyepieces
• Glare control: Position lights perpendicular to eyepieces
• Wrist support: A folded towel under forearms prevents shoulder tension
• 20-20-20 rule: Every 20 minutes, focus on something 20 feet away for 20 seconds

That afternoon with the algae scope taught me: ergonomic adjustments compound. Raise the eyepiece, add a wrist rest, soften the glare, and suddenly two hours feel like twenty minutes. Not because the task changed, but because discomfort stopped stealing attention.

Making the Switch: Actionable First Steps

Start small but meaningful:

1. Audit your current eyepieces: Measure barrel diameter (23mm is most common)
2. Prioritize wide-field 10x: Best value for general exploration (a WF10x wide-field pair is often ideal)
3. Test drive rentals: Many clubs loan eyepieces before purchase

Your microscope's potential is limited only by your ability to stay engaged. A thoughtfully chosen wide-field eyepiece doesn't just show more, it preserves the wonder that drew you to microscopy. Because when comfort fades into the background, what remains is pure discovery.

Let's make long sessions feel short. Your next microscopic adventure awaits.
